Brand Name : Sinuo
Model Number : SN2137-30mm
Certification : Calibration Certificate (Cost Additional)
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T
Supply Ability : 50 Sets Per Month
Delivery Time : 10 Days
Packaging Details : Carton
Applied standard : IEC 60335-2-40
Applied clause : 30.105 figure 105
Pressure of Ball : 20N±0.2N
Diameter of Ball : Ø5mm ±0.05mm
Test Stand : 100mm high x 50mm diameter
Ball Material : Hardened steel
Brand : Sinuo
Warranty : 1 year
IEC 60335-2-40 Clause 30.101 Figure 105 Ball Pressure Test Apparatus 30mm for weight area
Product information:
The ball pressure tester conforms to many standard requirements like IEC 60335-2-40 Clause 30.101 Figure 105, IEC 60695 -10- 2:2014 clause 5, IEC 62368-1 clause 5.4.1.10, IEC 60884-1 clause 25.2, 25.3, figure 37, IEC 60669-1 clause 21.3 and 21.4 figure 19, etc. It is used for testing the heat resistance of the electrical enclosure and external parts which are made up with the insulating materials. It is applicable to electrotechnical equipment and its subassemblies and components. It is also used for solid electrical insulating materials except ceramics.
In this test, a conditioned specimen is placed on a preheated support and subjected to a force of 20N applied through a 5mm steel ball. The test stand, specimen and loading device are then kept in an oven at an elevated temperature for an hour. After the hour, the loading device is removed from the sample, the sample is cooled and any indentation is measured. It is important to assure that the test stand has reached a stable elevated temperature as required by the test.
Technical Parameters:
Ball Diameter: Ø5mm ±0.05mm
Ball Pressure:20N±0.2N (includes loading device and ball)
Test Stand: 100mm high x 50mm diameter, hole diameter:1.2mm
Material: Stainless steel
Ball: hardened steel
Conforms to standard: IEC60695-10-2(2003), IEC 60884-1figure 37, IEC60320-1, IEC60335-1, IEC60598-1, IEC60950-1.
![]() |

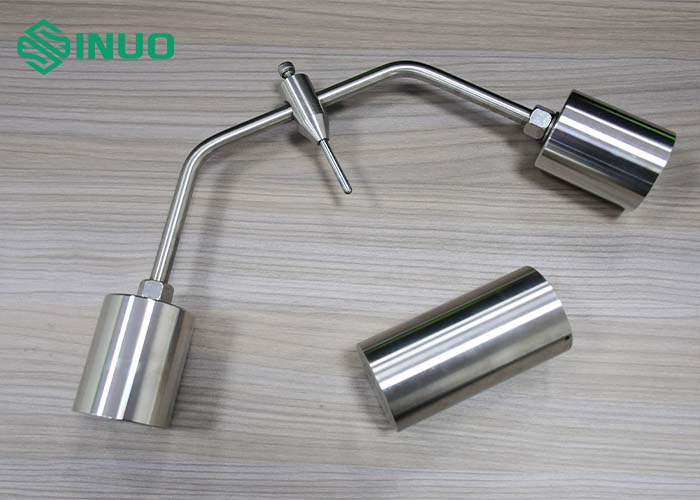

IEC 60335-2-40 Clause 30.101 Figure 105 Ball Pressure Test Apparatus 30mm For Weight Area Images |
