Household Appliance Rubber Hemisphere Drop Test Device For Spin Extractor IEC60335-2
Standards For Rubber Hemisphere Drop Test Device:
IEC 60335-2-7:2008 + A1:2011 part 2-7: particular requirements for washing machines, clause 21.101.1;
IEC 60335-2-4 household and similar electrical appliances – safety: part 2-4: particular requirements for spin extractors, clause 21.101.
Product Overview For Rubber Hemisphere Drop Test Device:
The device is used to verify the impact strength properties of the cover of electrical appliances loaded from the top.
This device uses electromagnetic iron to adsorbs a 20 kg hammer, the hammer head is made of rubber with a diameter of 70 mm hardness of 40-50 IRHD, release from the height of 100 mm from the center of the cover, the impact hammer falls freely with 20 J of energy to impact the cover. After three tests, check whether the cover is damaged to the extent that the running parts can be touched.
Technical Parameters For Rubber Hemisphere Drop Test Device:
| Test station | Single |
| Electrical Control Method | Button control |
| Impact element release mode | Electromagnetic release |
| Rubber hemispheres | Diameter 70 mm, hardness 40~50 IRHD |
| Impact element weight | 20kg |
| Drop Height | 100mm, Equipment self-positioning, liftable |
| Equivalent Impact Energy | 20J |
| Test Time | 3times |
Use Environment For Rubber Hemisphere Drop Test Device:
Power supply:AC220V±10%/50-60Hz, atmospheric pressure 80～106kpa ,working temperature 5～40°C, humidity 30%-90%,(20～)%RH. No violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation
Structure For Rubber Hemisphere Drop Test Device:

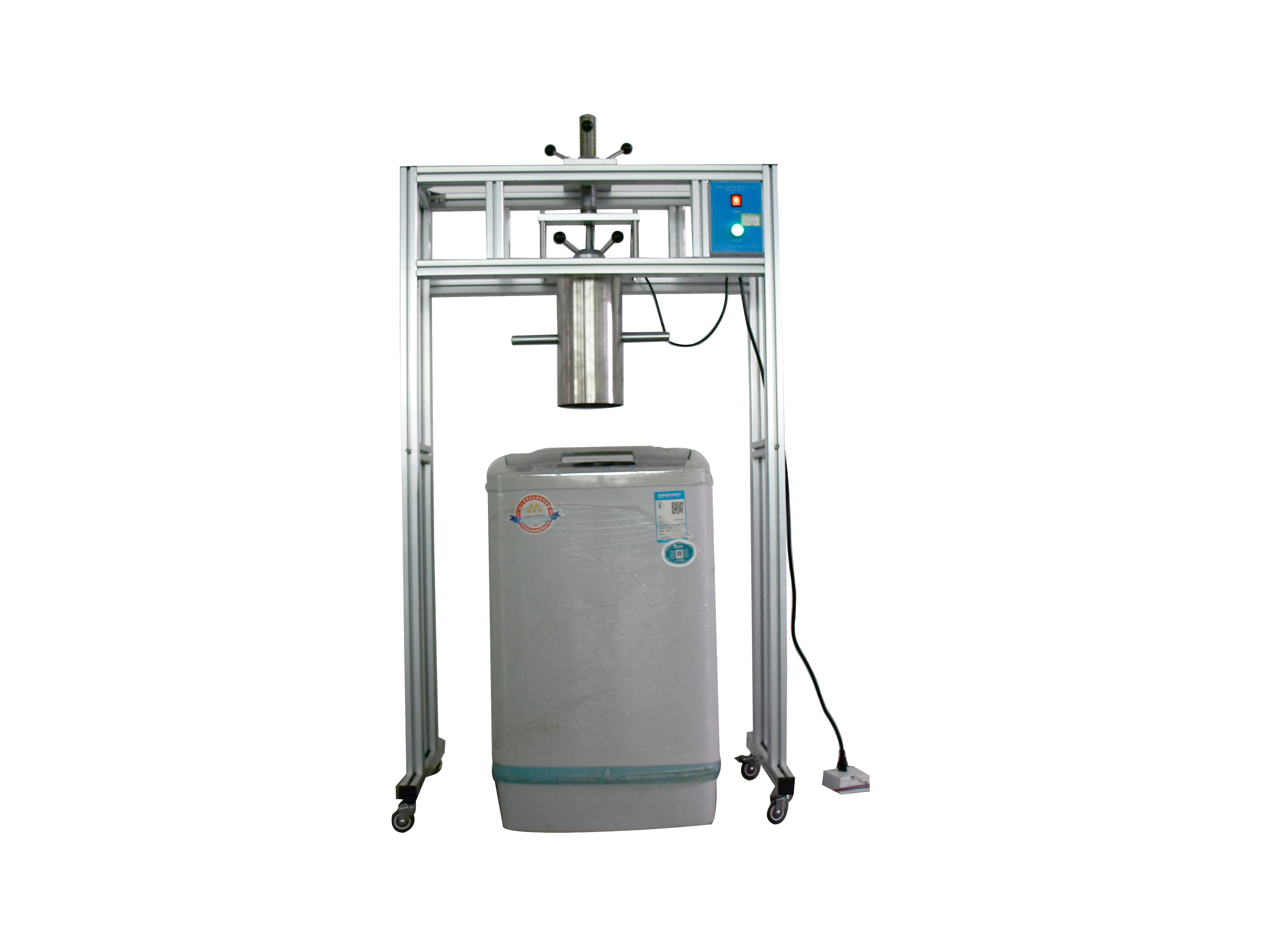

This equipment adopts movable car structure, does not need to move the sample, the equipment impact hammer head can be positioned above the cover.
Equipment Dimensions:about:880×460×1630(mm)W×D×H
Equipment weight:80kg
