IEC60335-1 Air/Oxygen Bomb Test Apparatus For Household Electrical Appliances
Product Introduction For Air/Oxygen Bomb Test Apparatus:
Standard:Conforms to IEC 60811-412, IEC60335-1:2004 clause 22.32, IS: 9968 (Part 1 & 2), IS: 6380, IS: 10810-16, etc.
Application:It is applicable for the aging test of the electric wire, the insulation layer and sheath of the rubber (plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.
Structural principles:Adopt inner and outer box structure,sample suspended in oxygen tank,purity of oxygen supplied no less than 97%,pressure to 2.1±0.07 MPa ,temperature maintained at 70°±1°±C, aging test for 96hours in this state.
Test Principle: Adopts the servo motor to drive the turntable, to make the specimen to swing left and right, the test will be automatically stopped when the test cycles reach the preset value.
Technical Parameters For Air/Oxygen Bomb Test Apparatus:
| Test station | Single |
| Use Environment | Power supply:AC220V±10%/50-60Hz,compressed air 5~7kg/cm2,0.5KW |
| Technical Parameters | 1. Power:220V(AC), 50Hz, Single phase 2. Maximum Working Pressure:2.5MPa 3. Security Burst Pressure:2.7～3.3MP 4. Temperature range: 0～200℃ 5. Dimensions:800×500×820mm 6. Tank volume:4000cm3 7. Heater power:2.4KW 8. Temperature alarm:0～200℃ adjustable 9. Temperature Deviation:±0.5℃ 10. Temperature control:Digital display automatic control 11. Temperature control:Intelligent control 12. Construction materials:Stainless steel 13. Inner cell dimensions: 150×320mm (D × H) mm |
Product Tags:
|
|

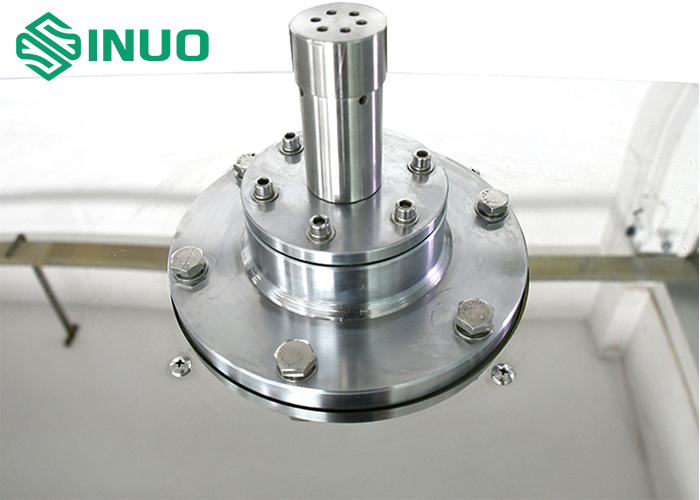

IEC60335-1 Air Oxygen Bomb Test Apparatus For Household Electrical Appliances Images
|
